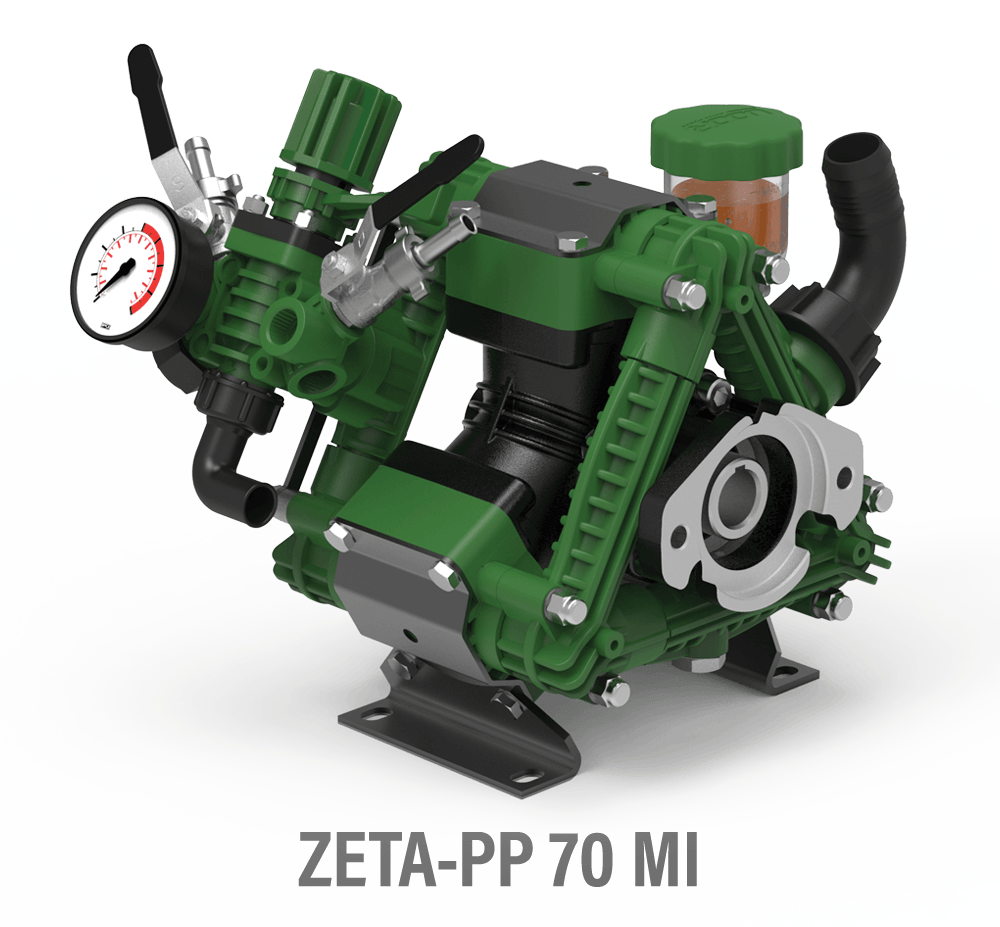

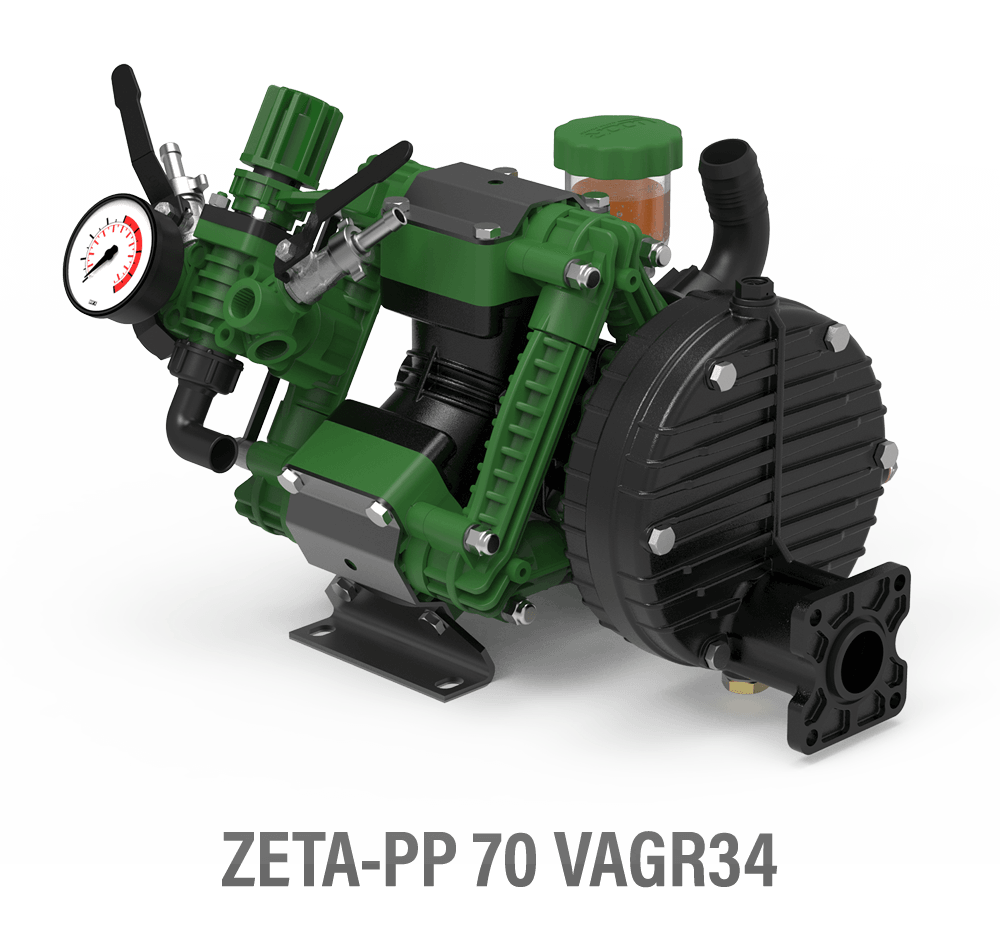

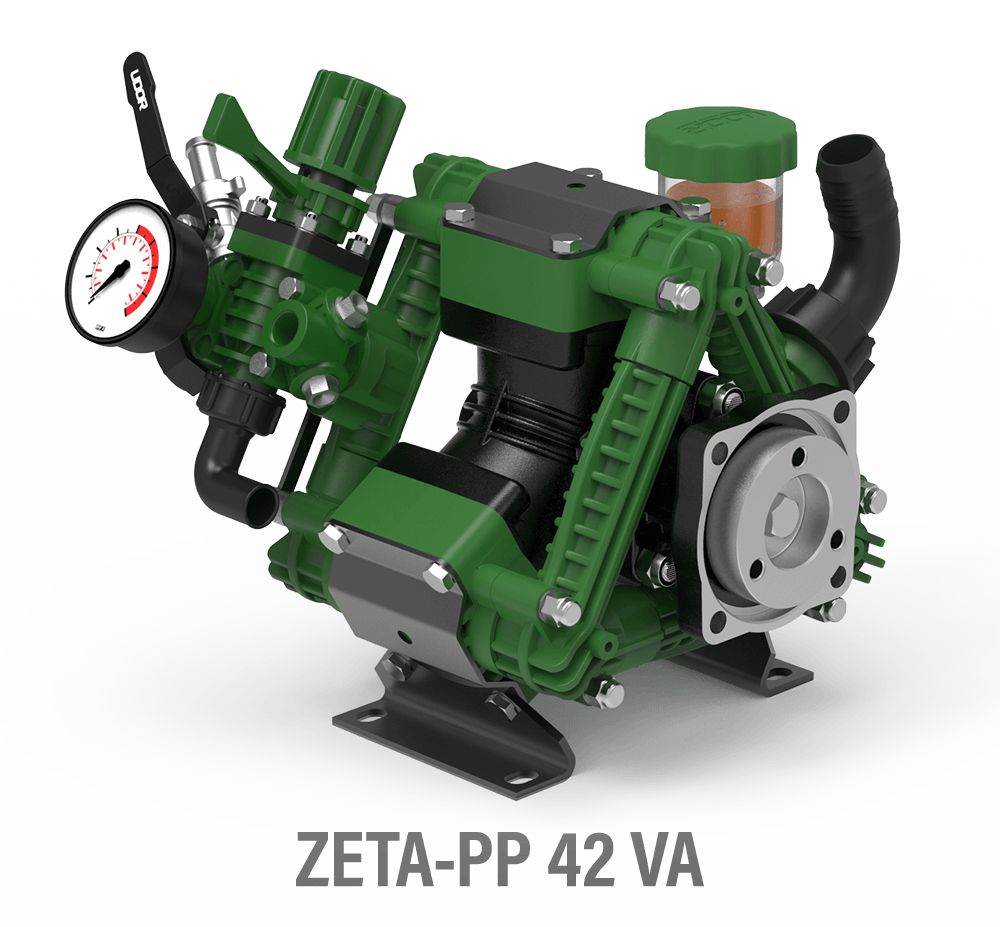

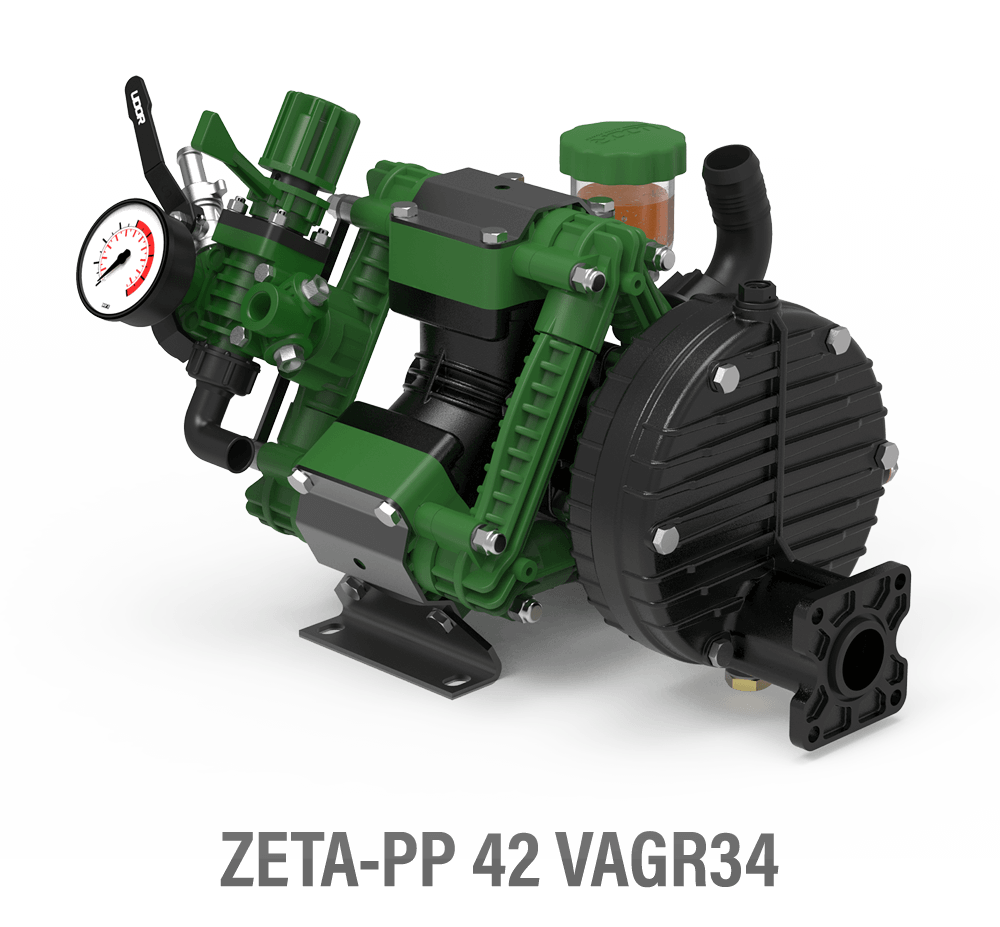

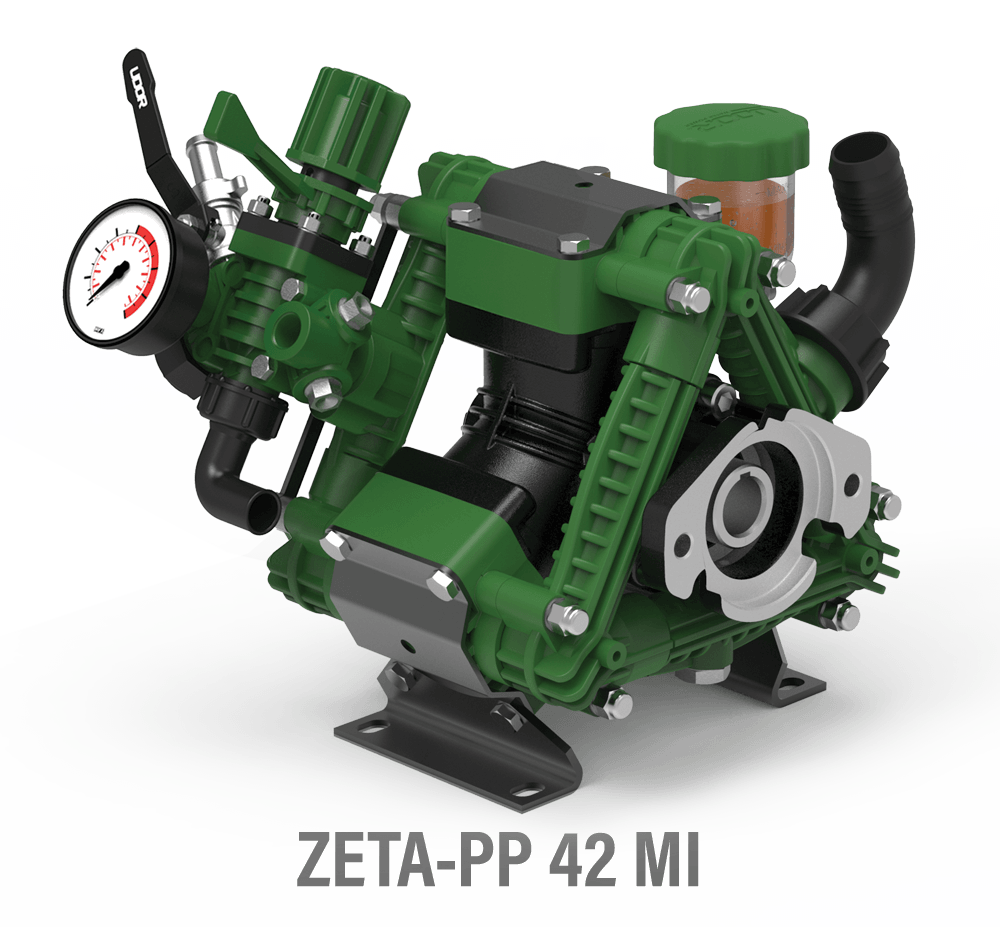

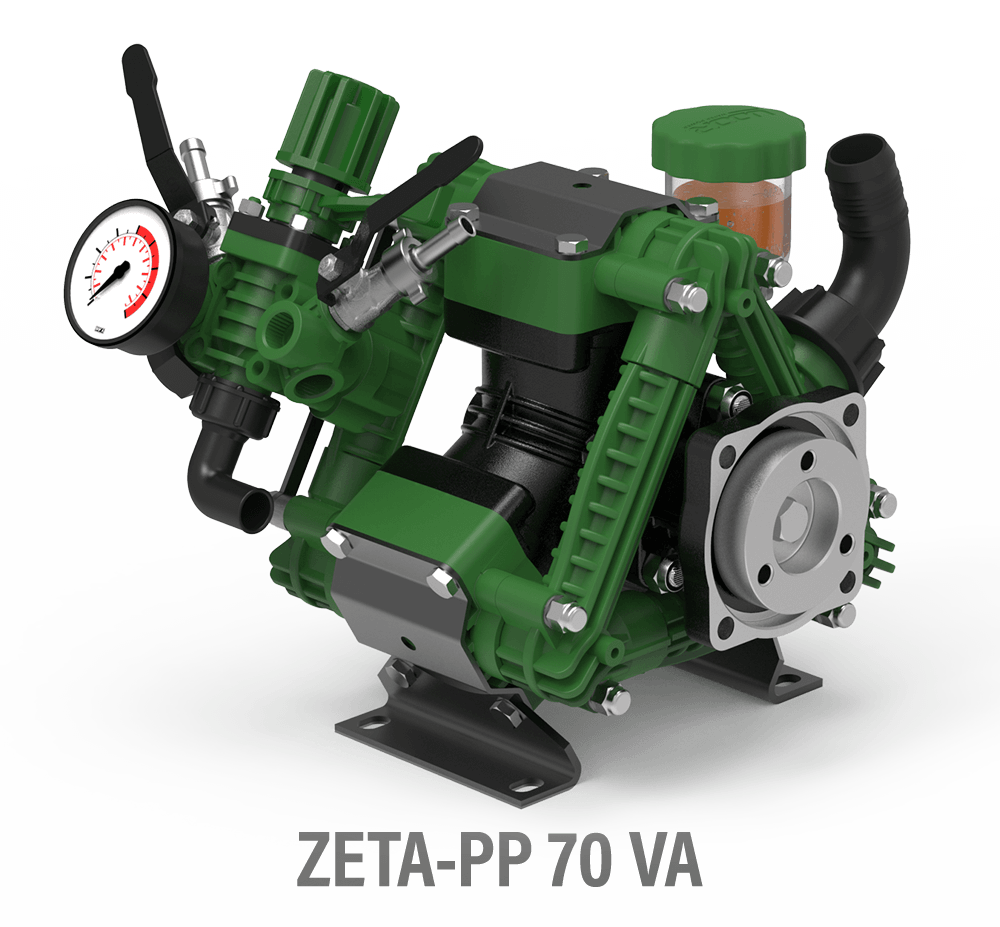

3-Cylinder, Low Pressure Diaphragm Pumps
ZETA-PP low pressure 3-cylinder diaphragm pumps have anodized aluminum bodies with polypropylene heads & manifolds, and stainless steel valves. A control valve with pressure gauge is standard on all models.
ZETA-PP pumps are excellent for soft wash as well as various horticultural and agricultural spraying applications.
| Specifications | ZETA-PP 42 | ZETA-PP 70 |
| Inlet Port | 1-1/4″ Hose Barb | 1-1/4″ Hose Barb |
| Outlet Ports – Valve | (1) 1/2″ Hose Barb | (2) 1/2″ Hose Barb |
| Bypass | 3/4″ Hose Barb | 3/4″ Hose Barb |
| Piston Diameter | 55.0mm | 55.0mm |
| Crankshaft Stroke/Code | ||
| Dimensions – Pump Only: 11″L x 11″W x 12″H – GR Version: 16″L x 11″W x 12″H |
||
| Lubrication: Requires 20 oz. of Udor Lube 40W Premium Pump Oil. Alternate Oil: 30W non-detergent or 15W-40 non-detergent oil. |
||
| Description | Part # |
| Diaphragm Kit – GREENTECH | 6710.02 |
| Diaphragm Bolt & Washer Kit | 6640.02 |
| Valve Kit | 6930.05 |
