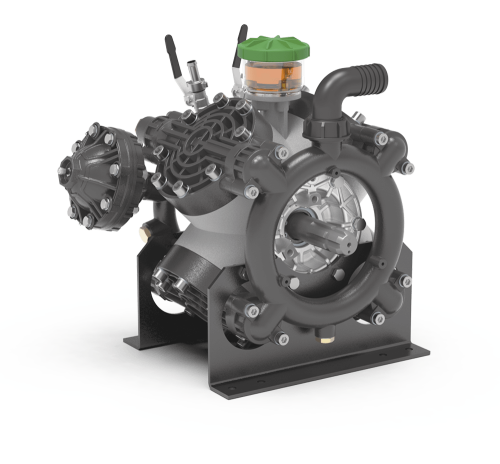

4-Cylinder, High Pressure Diaphragm Pumps
OMEGA 195 4-cylinder, high pressure, high volume diaphragm pumps are constructed of anodized aluminum, brass and stainless steel and have anodized aluminum, brass and stainless steel liquid handling parts. Includes mounting rails and 6005.05 control unit with pressure gauge. Simplicity of design and common parts allow for easy and economical maintenance.
OMEGA 195 pumps are excellent choices for various horticultural and agricultural spraying applications.
Pumps are available with a 1-3/8″ Male PTO thru-shaft.
| Specifications | OMEGA 195 |
| Inlet Port | 2″ Hose Barb |
| Outlet Ports | (2) 1/2″ Hose Barb Valve, 3/4″ FPT |
| Bypass | 1″ Hose Barb |
| Piston Diameter | 75mm |
| Crankshaft Stroke/Code | 19.0mm/U |
| Dimensions | 17.4″L x 15.5″W x 17.2″H |
| Lubrication: Requires 91 oz. of Udor Lube 40W Premium Pump Oil. Alternate Oil: 30W non-detergent or 15W-40 non-detergent oil. |
|
Quick Reference Service Parts
| Description | Part # |
| Diaphragm Kit – GREENTECH | 8700.07 |
| Diaphragm Bolt & Washer Kit | 6640.03 |
| Valve Kit | 6062.E1 |
