35 mm Solid Keyed Shaft
- Stainless Steel Manifold
- Solid Ceramic Plungers
- Stainless Steel Check Valves
- Heavy Duty Bronze Connecting Rods
- Heavy Duty Roller Bearings
- 1/2″ BSP-F Inlet. 1/2″ BSP-F Outlet
- 128 oz. Oil Capacity
- Max Fluid Temp, 160°F

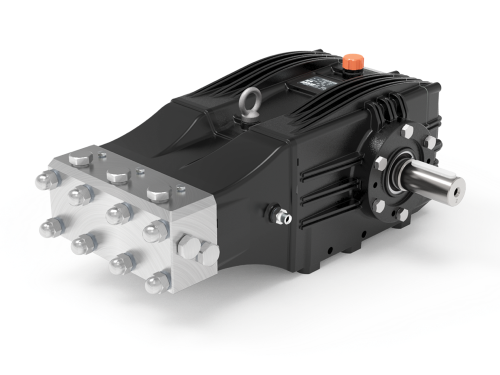

VYY Series Plunger Pumps
VYY Series Plunger Pump Models
Click model # for parts breakdown
| Model | Flow | Pressure | Plunger Diameter | Crankshaft | Power | Seal Kit | Valve Kit | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| GPM | L/min | PSI | Bar | Stroke | Code | |||||||
| 1000 RPM | VYY-B 20/1500 R | 5.0 | 18.9 | 21800 | 1500 | 14mm | 45.0mm | 2 | 73.0 EBHP | 6860.01 | 6920.01 | 143 lbs |
| 1200 RPM | VYY-F 25/1250 R | 6.0 | 22.6 | 18130 | 1250 | 14mm | 45.0mm | 2 | 73.0 EBHP | 6860.01 | 6920.01 | 143 lbs |
| VYY-F 23/1500 R | 5.7 | 21.7 | 21800 | 1500 | 14mm | 42.0mm | 8 | 83.6 EBHP | 6860.01 | 6920.01 | 143 lbs | |
NOTE: All pump models available with left-handed drive option. Substitute “L” for “R” in model number when ordering (ex: VY-C 15/1000 L).
