Pressure Regulators – Universal

Regulators – Universal

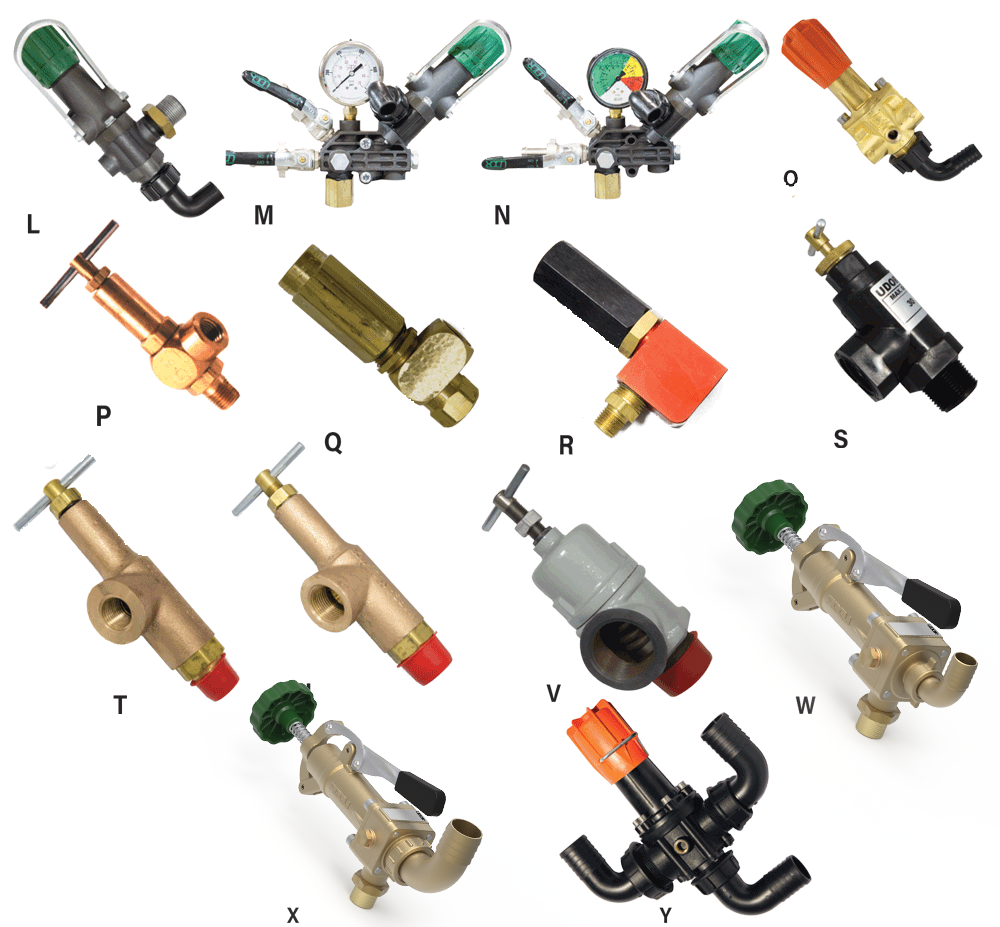

  Model GPM l/min PSI bar Inlet Outlet Bypass
L 6005.31/N 32.0 121.0 600 41 3/4″ MPT 3/4″ Hose Barb
8701.25 Repair Kit for 6005.31/N
L 6005.31/LP-N 32.0 121.0 350 24 3/4″ MPT 3/4″ Hose Barb
8701.25 Repair Kit for 6005.31/LP-N
M 6010.25/HP 27.0 102.0 560 38 3/4″ FPT (2) 1/2″ Hose Barb
6062.55 Repair Kit for 6010.25/HP
N 6010.25 27.0 102.0 350 24 3/4″ FPT (2) 1/2″ Hose Barb
6062.55 Repair Kit for 6010.25
O 1238.N4 40.0 152.0 400 27 3/4″ MPT 3/4″ Hose Barb
1238.N4/K Repair Kit for 1238.N4
P UD1/4-150 4.5 17.0 150 10 1/4″ MPT 3/8″ FPT
Q UD500F 7.0 26.5 500 34 3/8″ FPT 3/8″ FPT
Q UD550F 7.0 26.5 1000 68 3/8″ FPT 3/8″ FPT
Q UD555F 7.0 26.5 2000 136 3/8″ FPT 3/8″ FPT
R UD1/4-300 4.5 17.0 300 20 1/4″ MPT 3/8″ FPT
R UD3/4-60/P 30.0 113.7 70 5 3/4″ MPT 3/4″ FPT
S UD3/4-250/P 30.0 113.7 250 17 3/4″ MPT 3/4″ FPT
T UD1/2-300 20.0 75.8 300 20 1/2″ MPT 1/2″ FPT
U UD3/4-300 30.0 113.7 300 20 3/4″ MPT 3/4″ FPT
V 15-2740 80.0 303.2 300 20 1-1/4″ MPT 1-1/4″ FPT
W 6005.05/N 47.3 179.2 1200 81 3/4″ Male NPT 1″ Hose Barb
6062.54 Repair Kit for 6005.05/N & 6005.08/N
X 6005.08/N 66.0 250.0 1200 81 3/4″ Male NPT 1-1/2″ Hose Barb
6062.54 Repair Kit for 6005.05/N & 6005.08/N
Y VRG-400 106.0 402.0 290 20 2″ Hose Barb 1-1/2″ Hose Barb 1-1/2″ Hose Barb
