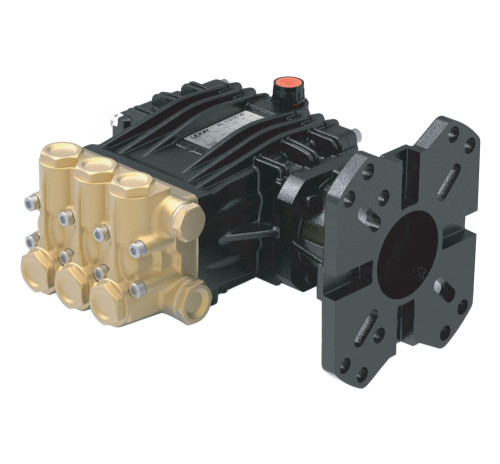

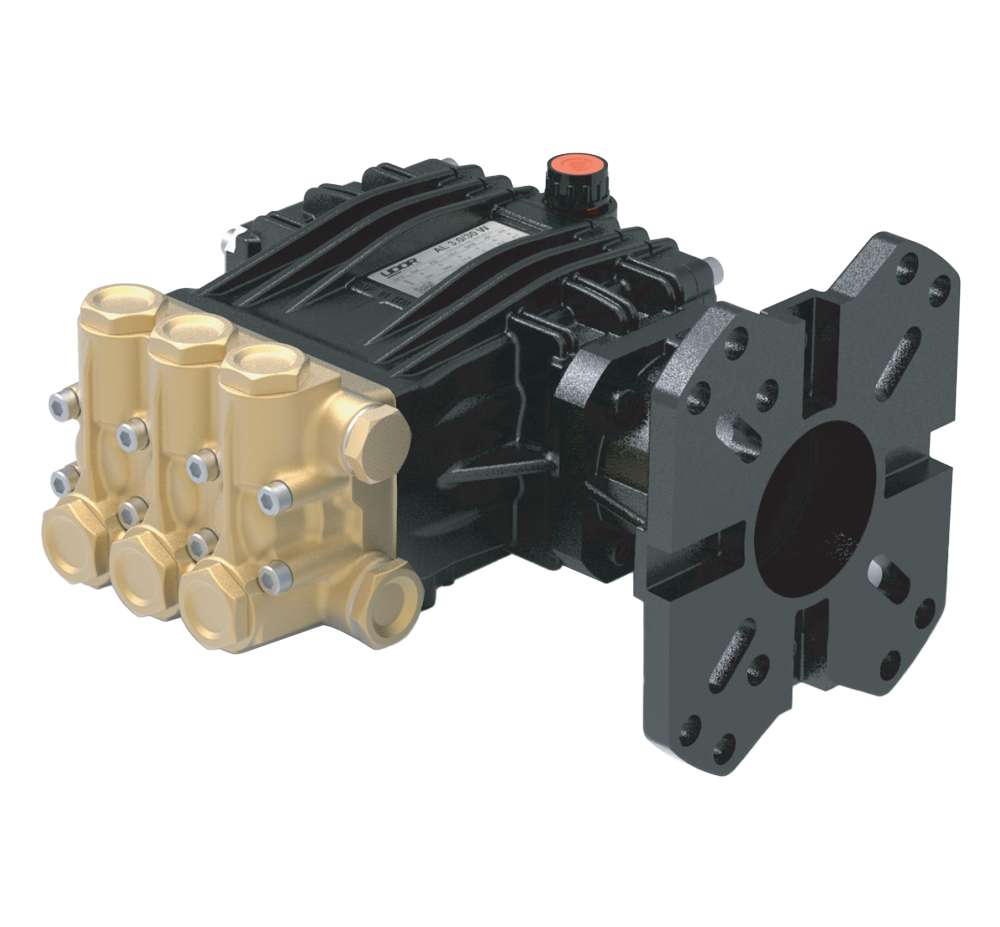

A Series Direct Drive, Gas Engine Flange Models
Click model # for parts breakdown
| Model |
GPM |
l/min |
Pressure |
Plunger Dia. |
Crankshaft |
Power |
Seal Kit |
Valve Kit |
Weight |
| PSI |
Bar |
Stroke |
Code |
| 3400 RPM |
AL 3.0/30 W |
3.0 |
11.4 |
2900 |
200 |
15mm |
10.5mm |
O |
7.5 HP Gas |
6061.07 |
6061.02 |
15.4 lbs |
| AL 3.5/30 W |
3.5 |
13.2 |
2900 |
200 |
15mm |
9.0mm |
M |
9 HP Gas |
6061.07 |
6061.02 |
15.4 lbs |
| AL 4.0/30 W |
4.0 |
15.0 |
2900 |
200 |
15mm |
10.0mm |
5 |
11 HP Gas |
6061.07 |
6061.02 |
15.4 lbs |
| |
Note: All pump models available with left-hand drive option. Add ‘L’ to model number when ordering (ex. AL 4.0/30 WL) |
