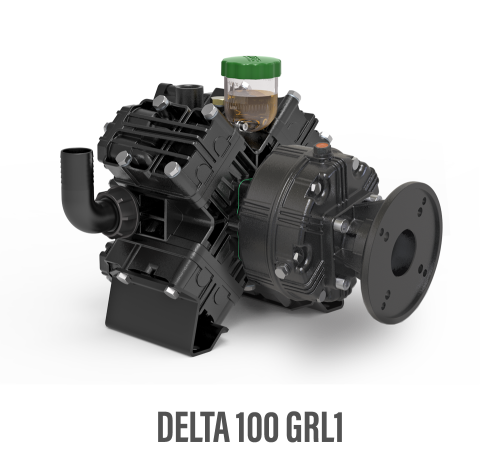

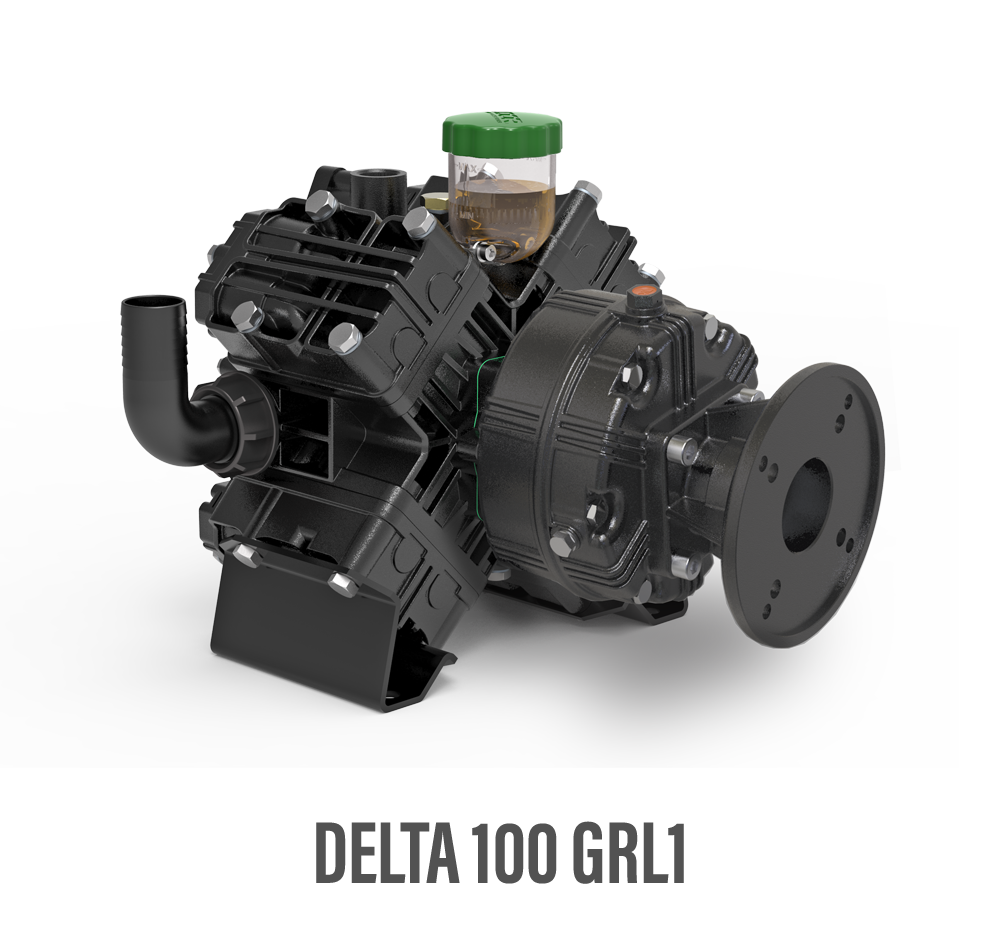

4-Cylinder, Medium Pressure Diaphragm Pumps

DELTA 100 diaphragm pumps are internally manifolded with anodized aluminum construction and anodized aluminum and stainless steel liquid handling parts. Includes mounting rails and control unit with pressure gauge.

DELTA 100 pumps are excellent choices for various horticultural, agricultural, lawn care, nursery, pest control and turf spraying applications. They are also effectively used for aircraft de-icing, hydrostatic testing and cleaning applications.

Specifications DELTA 100
Inlet Port 1-1/2″ Hose Barb
Outlet Ports (2) 3/4″ Hose Barb
Bypass 1″ Hose Barb
Piston Diameter 60mm
Crankshaft Stroke/Code 17.0mm/G
Dimensions 13.5″L x 17.0″W x 13.0″H
Lubrication: Requires 38.4 oz. of Udor Lube 40W Premium Pump Oil.
Alternate Oil: 30W non-detergent or 15W-40 non-detergent oil.



Repair Kits Part #
Diaphragm Kit – GREENTECH 8700.80
Diaphragm Bolt & Washer Kit 6062.12
Valve Kit 6062.E5
Regulator Repair Kit 6062.53
Complete Repair Kit 8700.80CK
