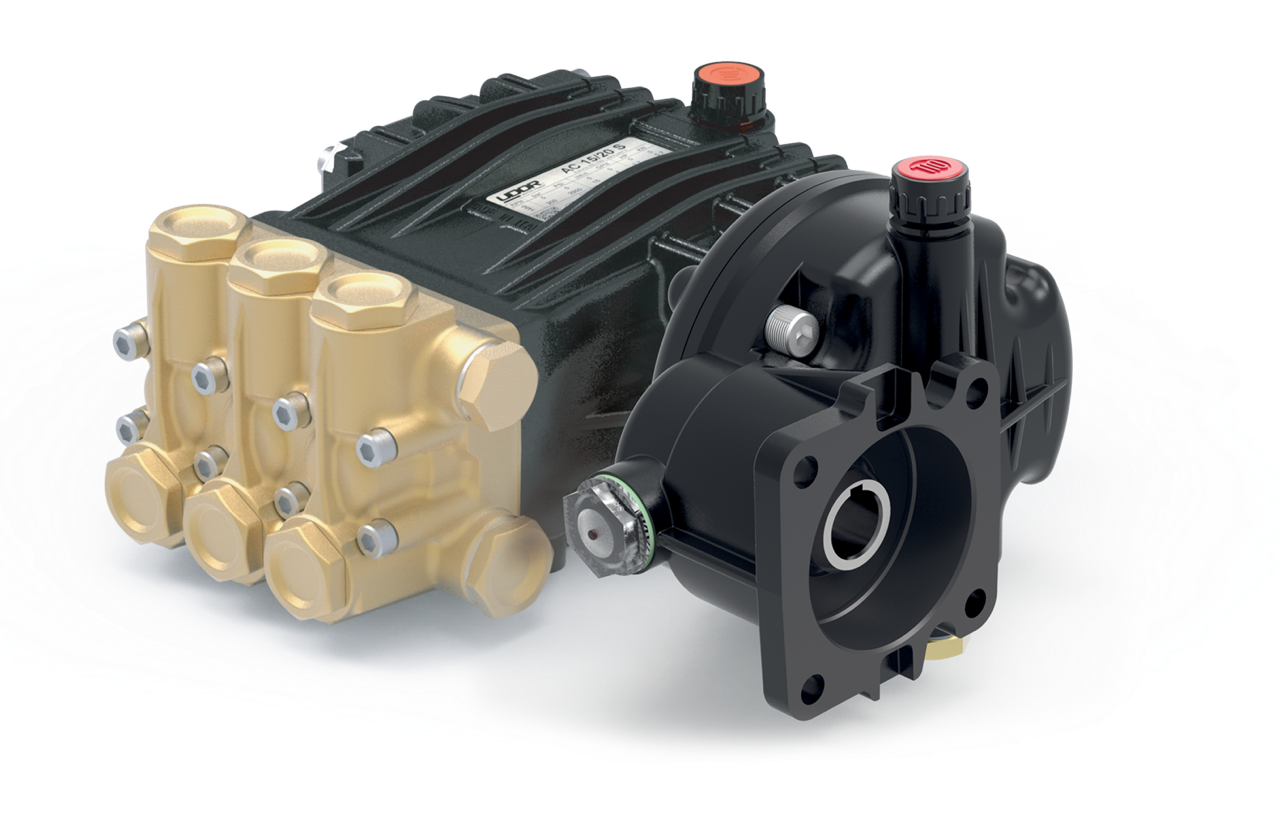

A Series Gear Reduction, Gas Engine Drive Models
Click model # for parts breakdown
| Model |
Flow |
Pressure |
Plunger Dia. |
Crankshaft |
Power |
Seal Kit |
Valve Kit |
Weight |
| GPM |
l/min |
PSI |
Bar |
Stroke |
Code |
| Gear Reduction |
AC 09/20 GR |
2.4 |
9.0 |
2900 |
200 |
15mm |
12.5mm |
S |
6.5 HP Gas |
6061.07 |
6061.02 |
20 lbs |
| AC 11/20 GR |
2.9 |
11.0 |
2500 |
170 |
18mm |
10.5mm |
O |
6.5 HP Gas |
6061.E2 |
6061.02 |
20 lbs |
| AC 14/20 GR |
3.7 |
14.0 |
2000 |
140 |
18mm |
12.5mm |
S |
6.5 HP Gas |
6061.E2 |
6061.02 |
20 lbs |
| |
Note: All pump models available with left-hand drive option. Add ‘L’ to model number when ordering (ex. AL 4.0/30 WL)
Note: Pressure ratings are based on 6.5 HP maximum gearbox capacity |
